Imu

Advanced Concepts:

Thresholding:

Sometimes we want to remove noise from our measurements to detect a specific action or motion. The easiest way to do this is thresholding. Here’s the program I’ve setup:

IMU-Serial-Plotter-Thresholding.ino

#include <tinyCore_LSM6DS3TRC.h>

tinyCore_LSM6DS3TRC lsm6ds3trc;
unsigned long lastSampleTime = 0;
const unsigned long SAMPLE_INTERVAL = 25; // Sample every 25ms

// Z-axis threshold parameters (in m/s^2)
float Z_THRESHOLD_MIN = -5.0;  // Minimum threshold
float Z_THRESHOLD_MAX = 5.0;   // Maximum threshold
int thresholdState = 0;        // Current threshold state (0 or 1)

void setup() {
  Serial.begin(115200);
  /* while (!Serial) {
    delay(10);
  }*/

  // Initialize IMU-related pins
  pinMode(6, OUTPUT);
  digitalWrite(6, HIGH);

  // Initialize I2C
  Wire.begin(3, 4);
  delay(100);

  Serial.println("Scanning for I2C devices...");
  for (byte address = 1; address < 127; address++) {
    Wire.beginTransmission(address);
    byte error = Wire.endTransmission();
    if (error == 0) {
      Serial.print("I2C device found at address 0x");
      if (address < 16) {
        Serial.print("0");
      }
      Serial.println(address, HEX);

      // If this is our LSM6DS3TR-C address, try reading WHO_AM_I register
      if (address == 0x6A) {
        Wire.beginTransmission(0x6A);
        Wire.write(0x0F); // WHO_AM_I register address
        Wire.endTransmission(false);
        Wire.requestFrom(0x6A, 1);
        if (Wire.available()) {
          byte whoAmI = Wire.read();
          Serial.print("WHO_AM_I register value: 0x");
          Serial.println(whoAmI, HEX); // Should be 0x6A for LSM6DS3TR-C
        }
      }
    }
  }

  Serial.println("Attempting to initialize LSM6DS3TR-C...");
  if (!lsm6ds3trc.begin_I2C()) {
    Serial.println("Failed to find LSM6DS3TR-C chip");
    Serial.println("Check your wiring!");
    while (1) {
      delay(10);
    }
  }

  Serial.println("LSM6DS3TR-C Found!");

  // Configure IMU settings
  lsm6ds3trc.setAccelRange(LSM6DS_ACCEL_RANGE_2_G);
  lsm6ds3trc.setGyroRange(LSM6DS_GYRO_RANGE_250_DPS);
  lsm6ds3trc.setAccelDataRate(LSM6DS_RATE_104_HZ);
  lsm6ds3trc.setGyroDataRate(LSM6DS_RATE_104_HZ);

  // Print labels for Serial Plotter
  Serial.println("AccelZ:ThresholdMin:ThresholdMax:ThresholdState");
}

void sampleIMUData() {
  sensors_event_t accel;
  sensors_event_t gyro;
  sensors_event_t temp;

  lsm6ds3trc.getEvent(&accel, &gyro, &temp);

  // Get Z-axis acceleration
  float accelZ = accel.acceleration.z;

  // Determine threshold state (1 if within thresholds, 0 if outside)
  if (accelZ >= Z_THRESHOLD_MIN && accelZ <= Z_THRESHOLD_MAX) {
    thresholdState = 0;  // Within threshold range (not triggered)
  } else {
    thresholdState = 1;  // Outside threshold range (triggered)
  }

  // Format data for serial plotter
  // Using the format: AccelZ, ThresholdMin, ThresholdMax, ThresholdState
  Serial.print("accelZ:");
  Serial.print(accelZ);
  Serial.print(",");
  Serial.print("T_MIN:");
  Serial.print(Z_THRESHOLD_MIN);
  Serial.print(",");
  Serial.print("T_MAX:");
  Serial.print(Z_THRESHOLD_MAX);
  Serial.print(",");
  Serial.print("State:");
  Serial.println(thresholdState * 10);  // Multiply by 10 to make it more visible in the plot
}

void loop() {
  unsigned long currentTime = millis();

  // Sample data at specified interval
  if (currentTime - lastSampleTime >= SAMPLE_INTERVAL) {
    sampleIMUData();
    lastSampleTime = currentTime;
  }
}

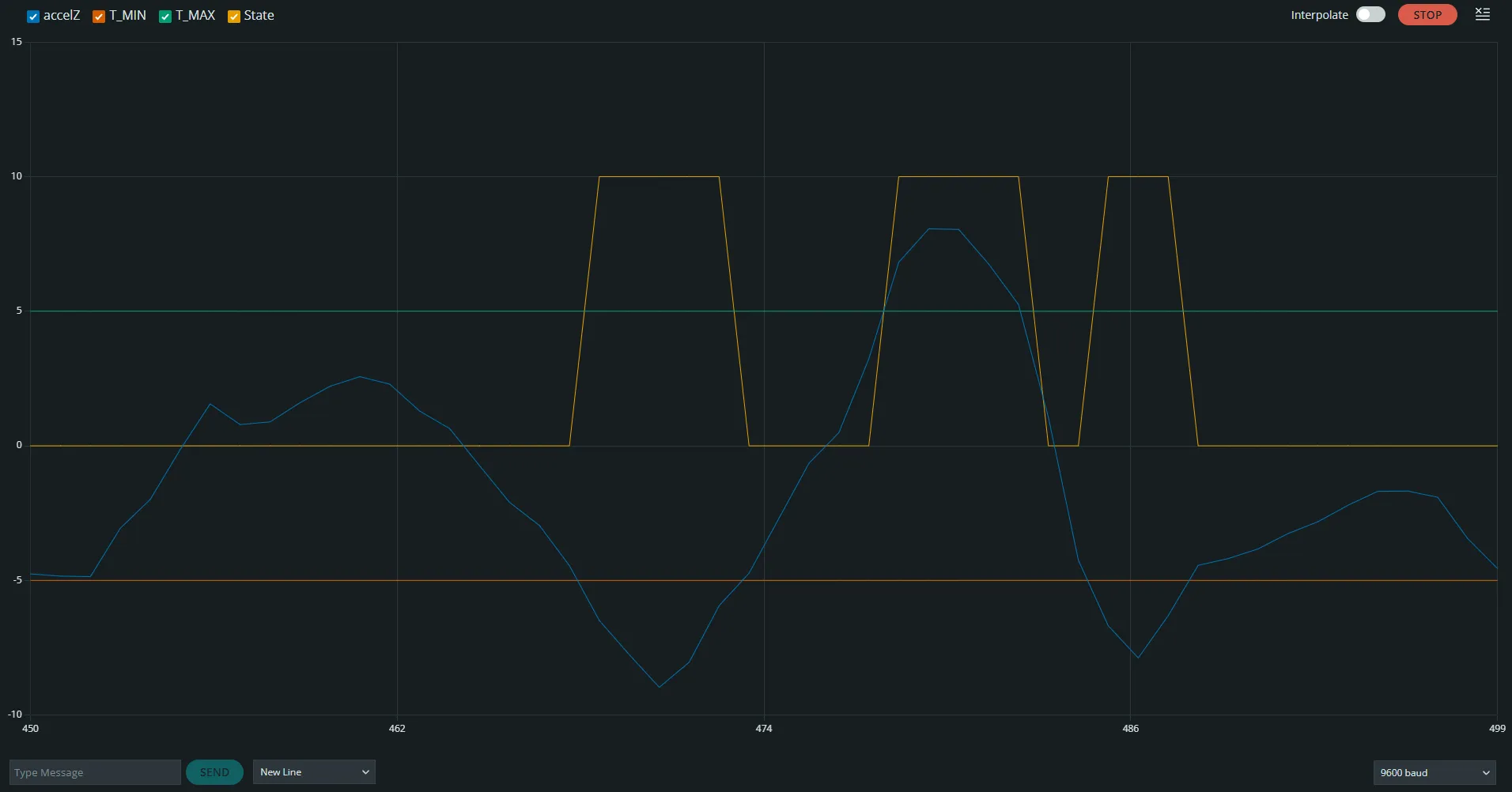

This code will take the Z-Axis (tinyCore Face side) and create a Threshold: Z_THRESHOLD_MIN and Z_THRESHOLD_MAX as well as tracking it using a thresholdState . You can see this on the graph, as we move the Z-axis (in blue), when we move outside of the lower and upper bound, our State will trigger. Here’s what that looks like measuring the device on a door:

Placement	Hinge Edge	Handle Edge
Times Done	10	10
Times Detected	4	13

Filtering:

Low-pass

High-pass

Band-pass

Kalman:

#include <tinyCore_LSM6DS3TRC.h>
#include <SimpleKalmanFilter.h>

tinyCore_LSM6DS3TRC lsm6ds3trc;
unsigned long lastSampleTime = 0;
const unsigned long SAMPLE_INTERVAL = 25; // Sample every 25ms

// Z-axis threshold parameters (in m/s^2)
float Z_THRESHOLD_MIN = -5.0;  // Minimum threshold
float Z_THRESHOLD_MAX = 5.0;   // Maximum threshold
int thresholdState = 0;        // Current threshold state (0 or 1)

// SimpleKalmanFilter parameters (e_mea, e_est, q)
// e_mea: Measurement uncertainty/noise
// e_est: Estimation uncertainty
// q: Process noise/variance
SimpleKalmanFilter simpleKalmanFilter(1.0, 0.1, 0.01);
float filteredAccelZ = 0.0;

void setup() {
  Serial.begin(115200);
  /* while (!Serial) {
    delay(10);
  }*/

  // Initialize IMU-related pins
  pinMode(6, OUTPUT);
  digitalWrite(6, HIGH);

  // Initialize I2C
  Wire.begin(3, 4);
  delay(100);

  Serial.println("Scanning for I2C devices...");
  for (byte address = 1; address < 127; address++) {
    Wire.beginTransmission(address);
    byte error = Wire.endTransmission();
    if (error == 0) {
      Serial.print("I2C device found at address 0x");
      if (address < 16) {
        Serial.print("0");
      }
      Serial.println(address, HEX);

      // If this is our LSM6DS3TR-C address, try reading WHO_AM_I register
      if (address == 0x6A) {
        Wire.beginTransmission(0x6A);
        Wire.write(0x0F); // WHO_AM_I register address
        Wire.endTransmission(false);
        Wire.requestFrom(0x6A, 1);
        if (Wire.available()) {
          byte whoAmI = Wire.read();
          Serial.print("WHO_AM_I register value: 0x");
          Serial.println(whoAmI, HEX); // Should be 0x6A for LSM6DS3TR-C
        }
      }
    }
  }

  Serial.println("Attempting to initialize LSM6DS3TR-C...");
  if (!lsm6ds3trc.begin_I2C()) {
    Serial.println("Failed to find LSM6DS3TR-C chip");
    Serial.println("Check your wiring!");
    while (1) {
      delay(10);
    }
  }

  Serial.println("LSM6DS3TR-C Found!");

  // Configure IMU settings
  lsm6ds3trc.setAccelRange(LSM6DS_ACCEL_RANGE_2_G);
  lsm6ds3trc.setGyroRange(LSM6DS_GYRO_RANGE_250_DPS);
  lsm6ds3trc.setAccelDataRate(LSM6DS_RATE_104_HZ);
  lsm6ds3trc.setGyroDataRate(LSM6DS_RATE_104_HZ);

  // Print labels for Serial Plotter
  Serial.println("RawAccelZ:FilteredAccelZ:ThresholdMin:ThresholdMax:ThresholdState");
}

void sampleIMUData() {
  sensors_event_t accel;
  sensors_event_t gyro;
  sensors_event_t temp;

  lsm6ds3trc.getEvent(&accel, &gyro, &temp);

  // Get Z-axis acceleration
  float rawAccelZ = accel.acceleration.z;

  // Apply SimpleKalmanFilter to smooth the data
  filteredAccelZ = simpleKalmanFilter.updateEstimate(rawAccelZ);

  // Determine threshold state based on filtered data (1 if outside thresholds, 0 if inside)
  if (filteredAccelZ >= Z_THRESHOLD_MIN && filteredAccelZ <= Z_THRESHOLD_MAX) {
    thresholdState = 0;  // Within threshold range (not triggered)
  } else {
    thresholdState = 1;  // Outside threshold range (triggered)
  }

  // Format data for serial plotter
  // Using the format: RawAccelZ, FilteredAccelZ, ThresholdMin, ThresholdMax, ThresholdState
  Serial.print(rawAccelZ);
  Serial.print(",");
  Serial.print(filteredAccelZ);
  Serial.print(",");
  Serial.print(Z_THRESHOLD_MIN);
  Serial.print(",");
  Serial.print(Z_THRESHOLD_MAX);
  Serial.print(",");
  Serial.println(thresholdState * 10);  // Multiply by 10 to make it more visible in the plot
}

void loop() {
  unsigned long currentTime = millis();

  // Sample data at specified interval
  if (currentTime - lastSampleTime >= SAMPLE_INTERVAL) {
    sampleIMUData();
    lastSampleTime = currentTime;
  }
}
